While I was working on the baffling, I heard from another builder who mentioned that he had a problem with his oil cooler hitting the engine mount. He said that when the engine is starting and stopping that it moves a bit and had removed some of the paint from the engine mount. He caught it before is wore a hole in the oil cooler.
He had just less than 1/2″ clearance.

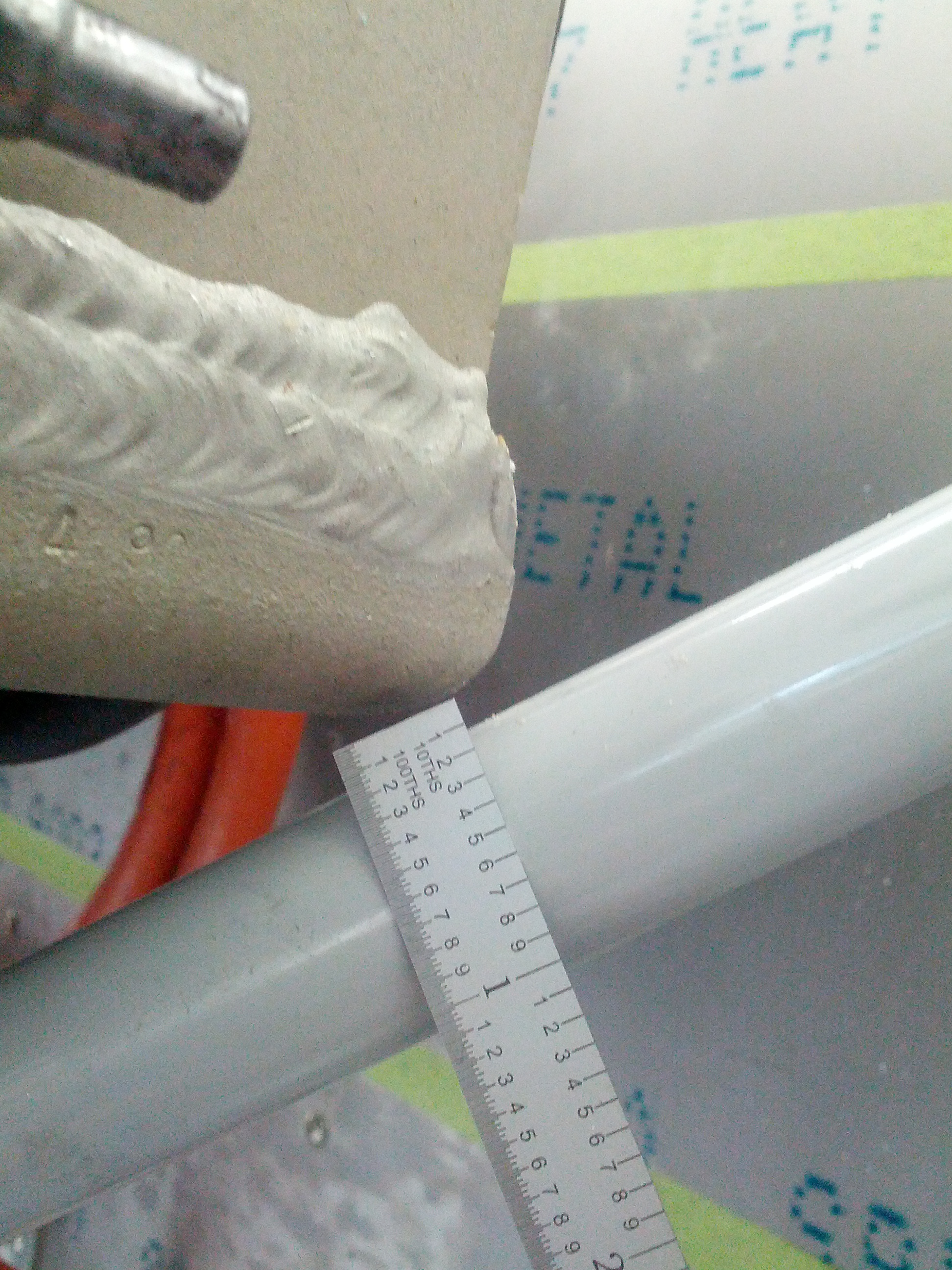

I decided to check mine and here’s what I found.
Not good. 🙁
I checked with the factory and they modified the engine mount a while back (before mine was made) to provide more clearance. They couldn’t figure out why I don’t have the proper clearance. They told me I could send back the mount and they would modify it but that would require removing the engine. I don’t have an engine hoist and doing it solo wouldn’t be fun. Plus, I didn’t know what other changes that modification would create.

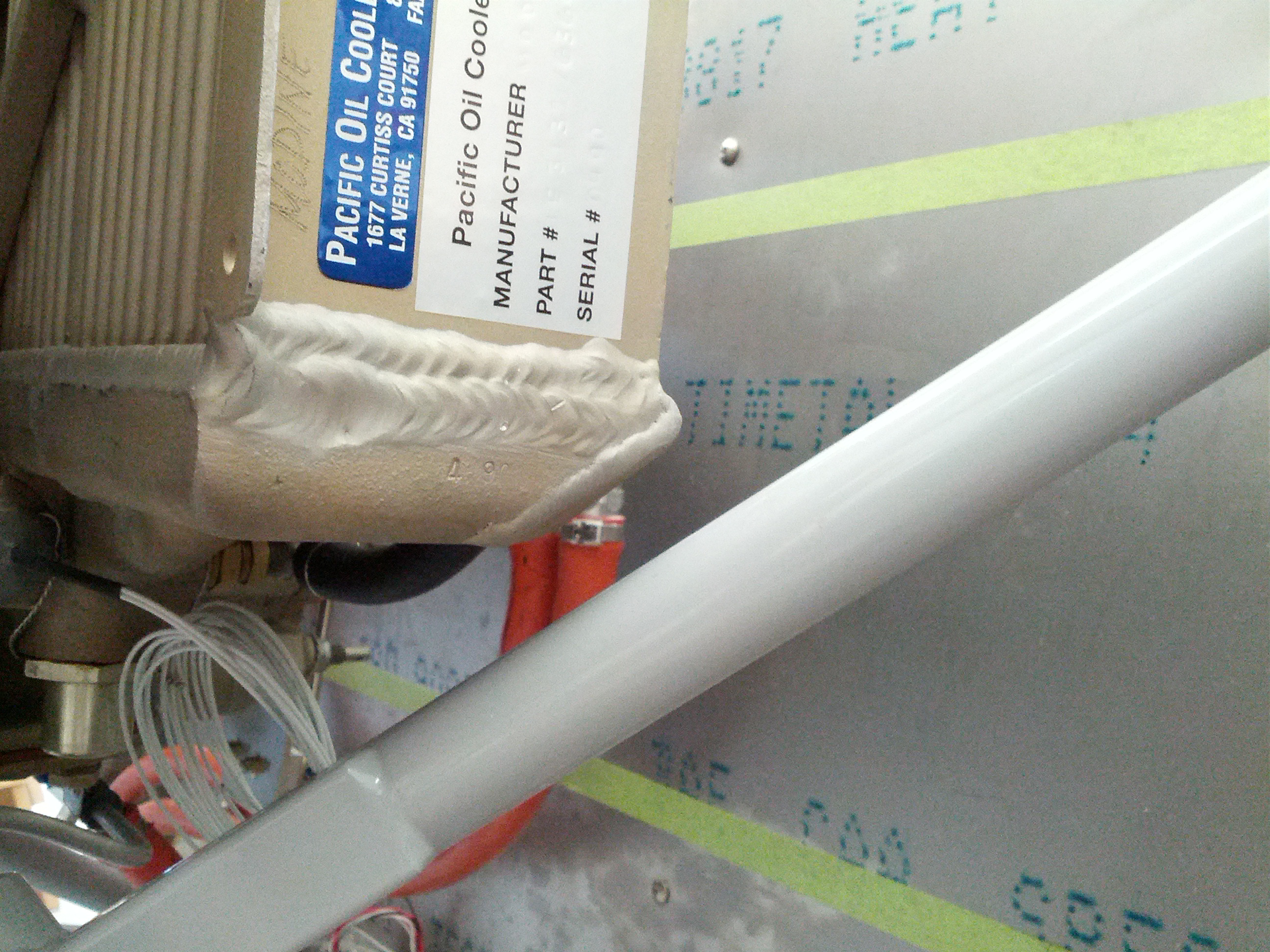

So I came up with plan B. I removed the oil cooler and sent it to Pacific Oil Cooler Services. Here’s the result:
