I received an early birthday present today.

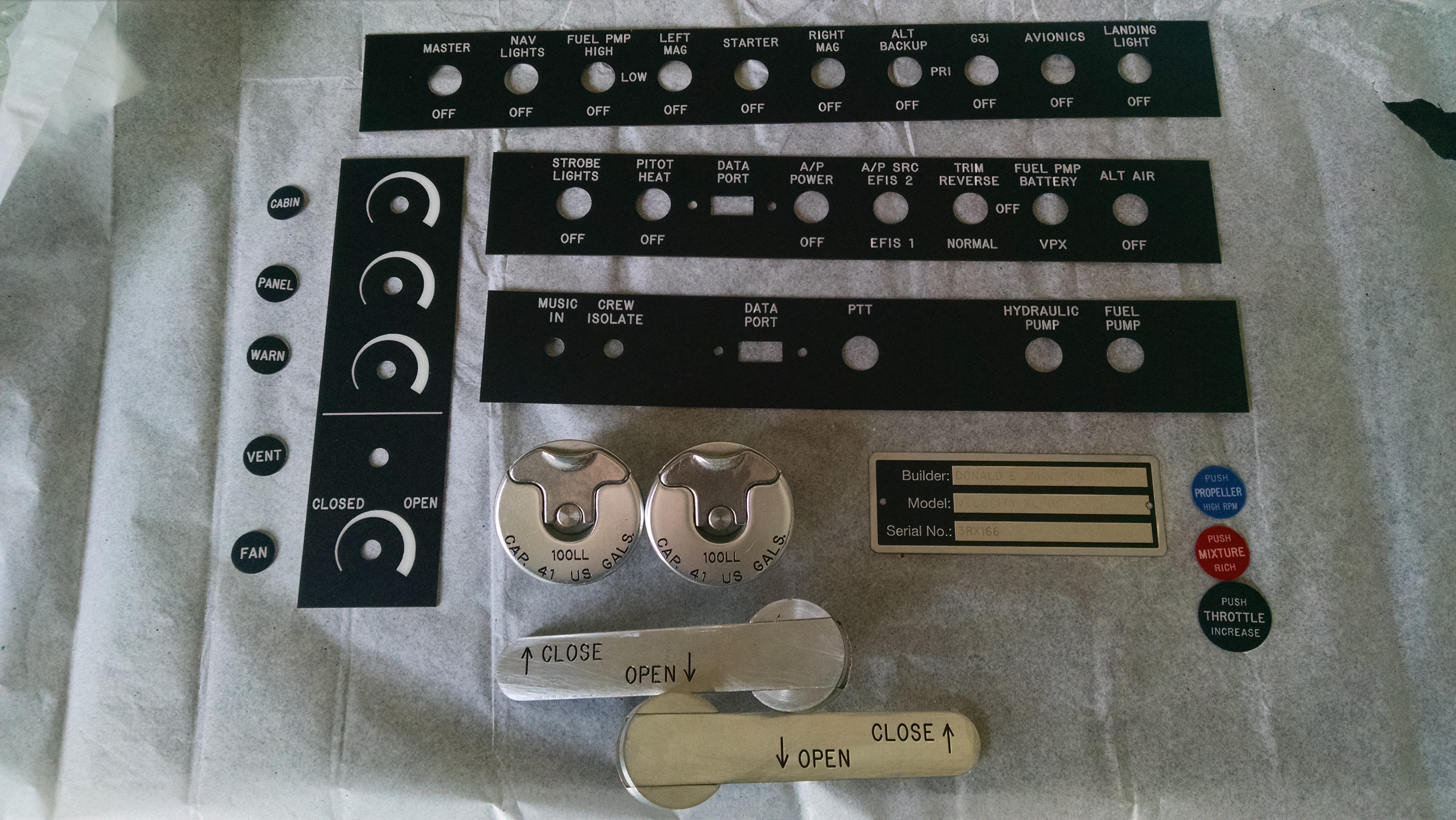

I ordered this through Aircraft Engravers.
So no stickers on the around the fuel caps or on the door.
I brought the switch panels home so I could work on the drilling out the mounting and switch guard holes.

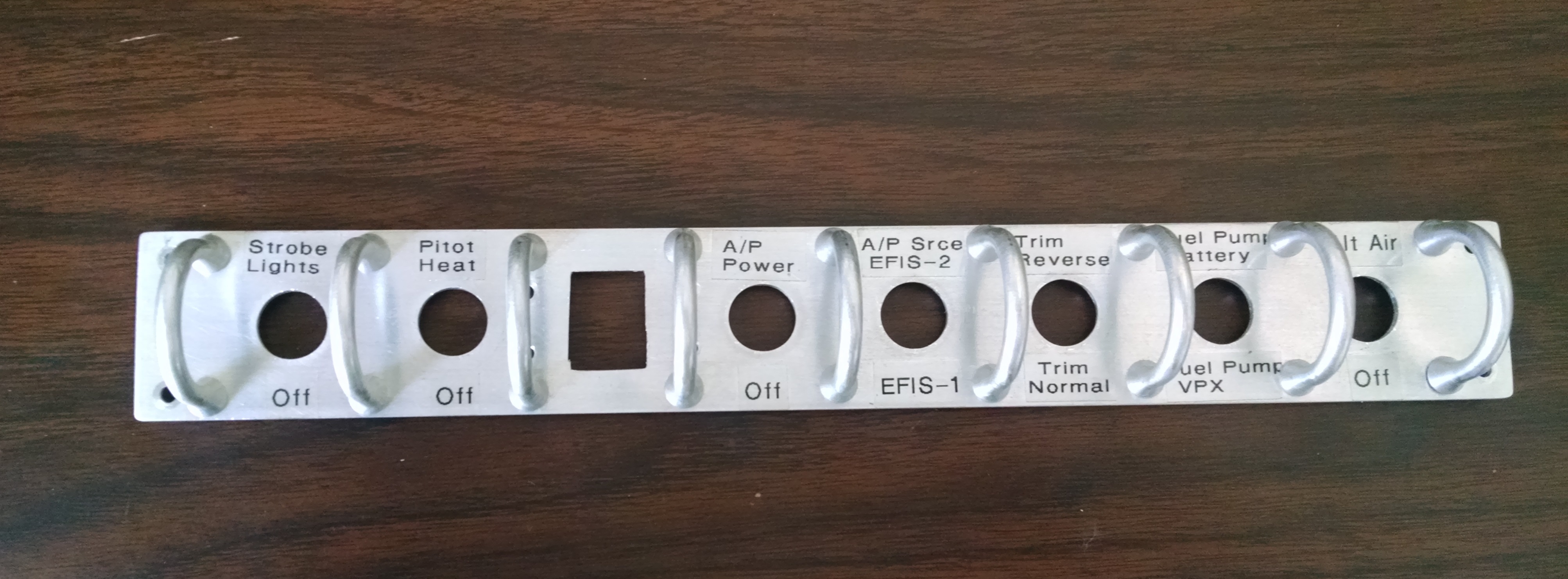

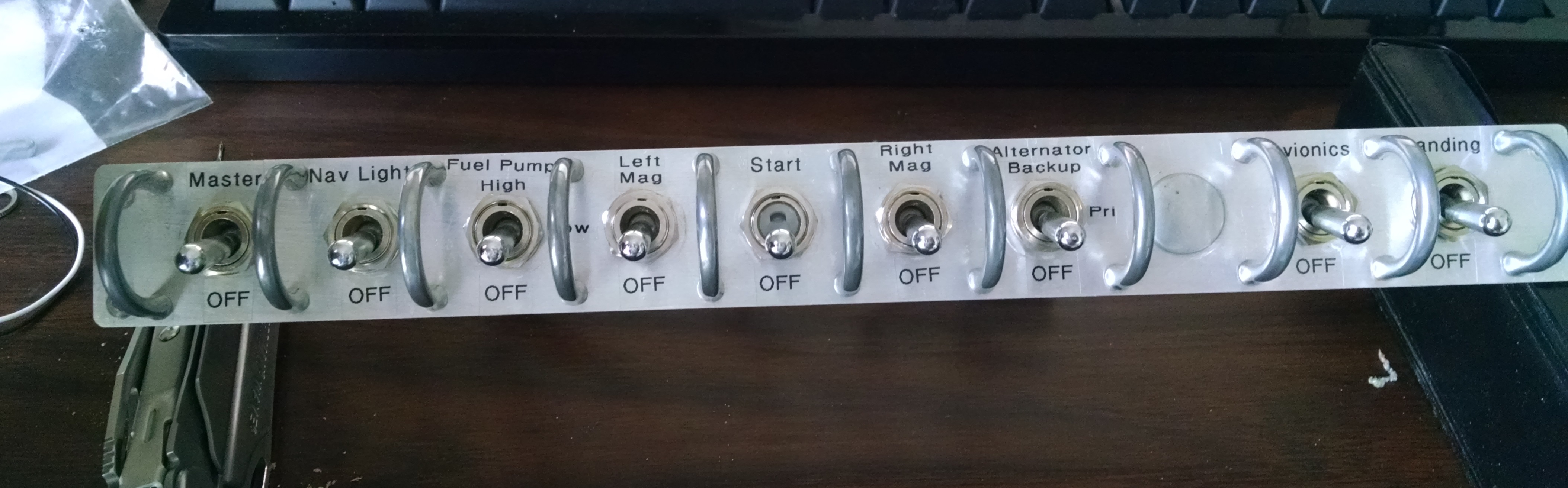

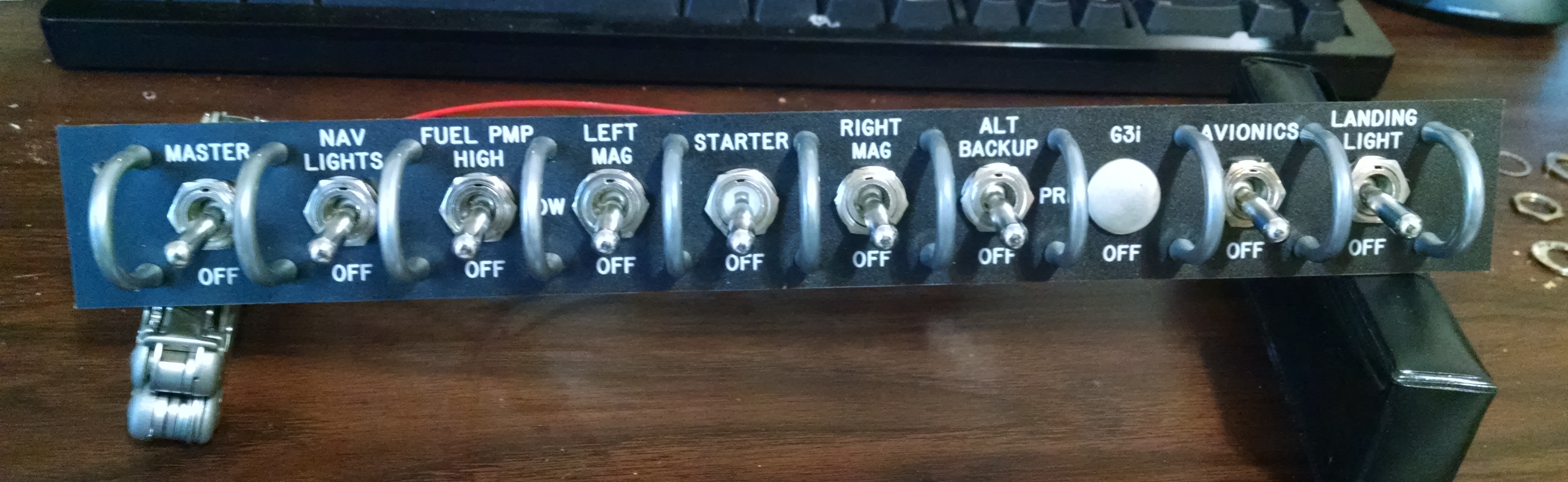

Lower Left Switch Panel before and after.

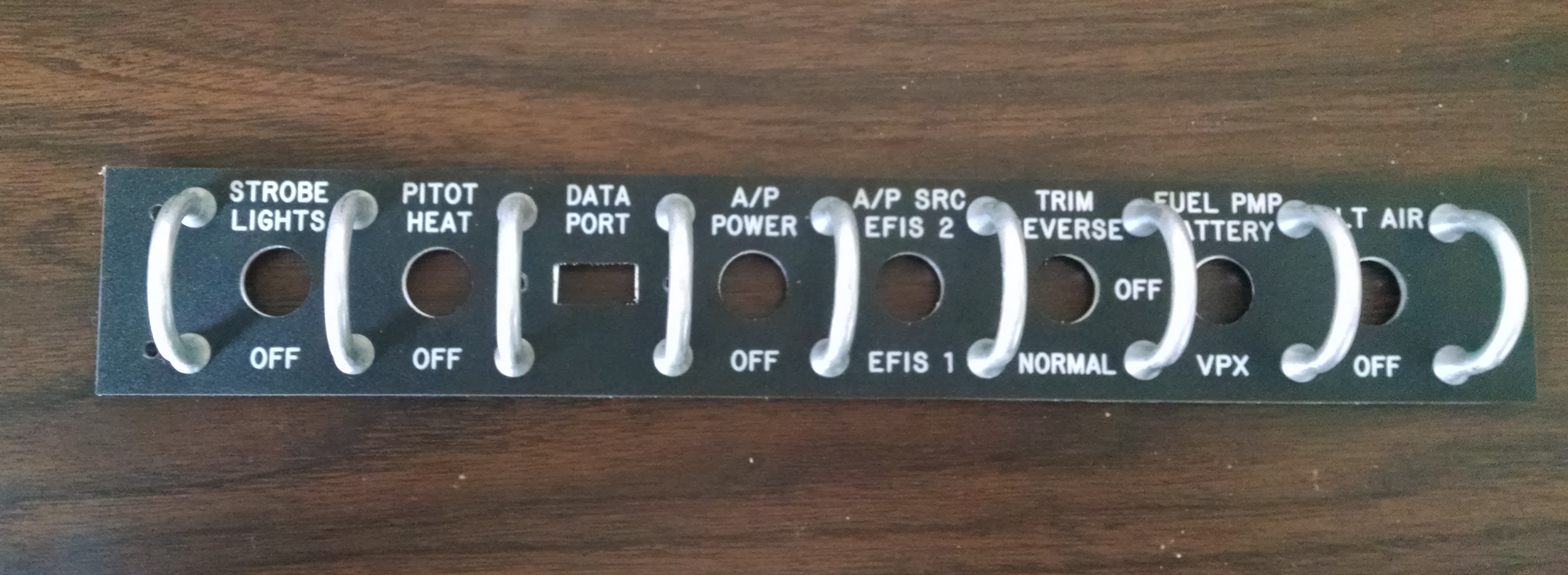

Overhead Switch Panel before and after.

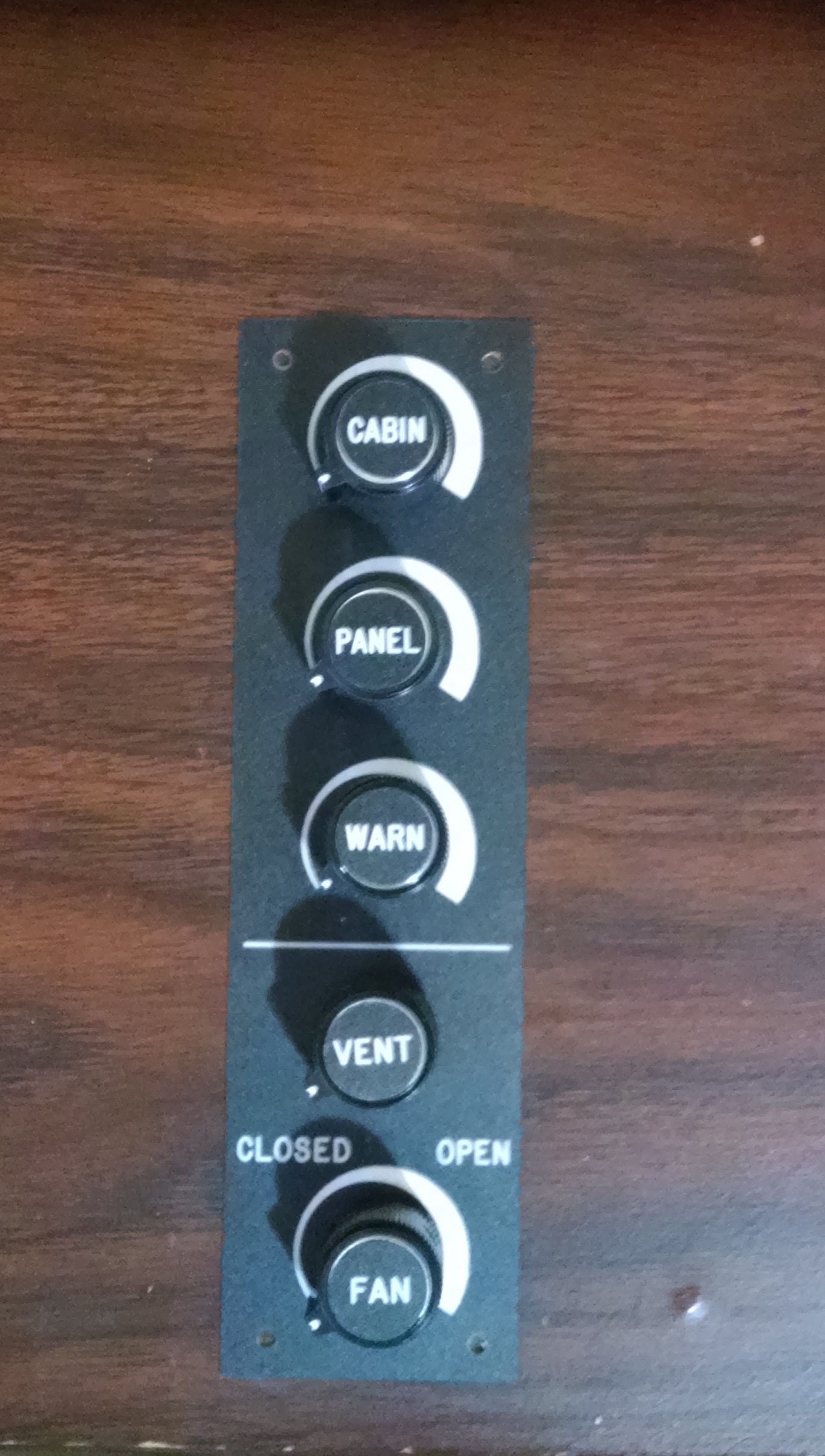

Light Dimmer and Vent Panel.
